Video VBOX Pro 10 Hz

Product Code: RLVD10P
Availability: In Stock

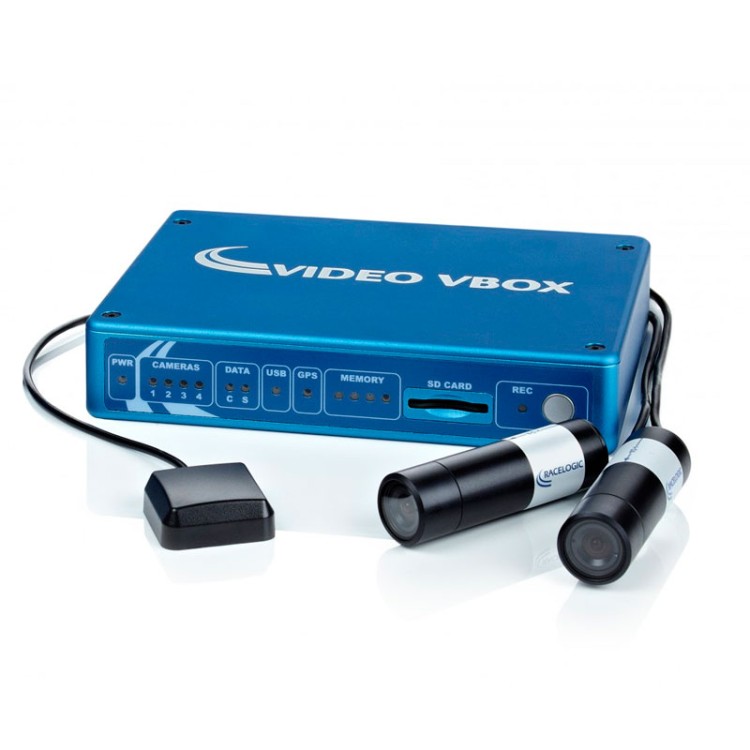

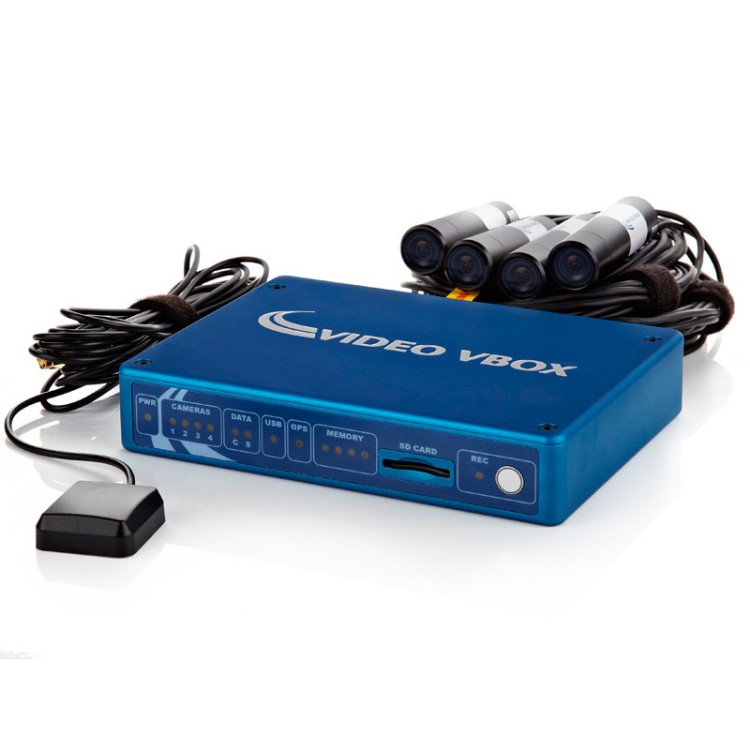

Video VBOX Pro is a high-end in-car video system aimed primarily at motorsport professionals and driving schools. Video VBOX Pro is housed in an aluminium enclosure. It combines a 10Hz VBOX GPS data logger with a 4 camera video system.

Package Contents:

$3,900.00 USD

Available Options

Cameras / CAN (PAL)

Qty

0 reviews / Write a review

Video VBOX Pro 10Hz GPS Data Logger and Video Recorder with Graphic Overlay and 8 CAN channel logging
Two Sony HQ1 Super HAD ExView 550/580L PAL cameras
Two camera mounts with windscreen suction cups
Forward facing camera ring
GPS antenna
Two microphones
One microphone splitter cable
In-car power supply
Mains power supply
4 GB SD card containing software and user guide
USB cable for connection to PC
Large Video VBOX carry case

Additional Options (please choose):

2 cameras and 32 CAN channel logging
4 cameras and 32 CAN channel logging

Please note that if you wish to order a Video VBOX package with NTSC capability, you should contact us first.

More information about the Video VBOX Pro can be found here. Please click here to download Video VBOX Pro data sheet.

GPS Specifications
Update Rate	10Hz
Velocity Accuracy	0.1 Km/h (averaged over 4 samples)
Acceleration Accuracy	1 %
Distance Accuracy	0.05 % (<50cm per Km)
Lap Timing Accuracy	0.01° s (with OLED Display/ Circuit Tools)
Technical
CAN Channels	8 (default), option with 32 CAN channels available
Cameras	2 or 4 580L high res bullet cameras (PAL)
Graphics	24bit colour plus 256 levels of alpha transparency
Storage Options	SD card (Fast SD card required)
Supported Software	Video VBOX Setup (Windows), Circuit Tools Analysis Software (Windows)
Environmental & Physical
Dimensions	170mm x 122mm x 33mm
Weight	700g
Input Voltage	9 – 15 V
Power	7.2 W Max
Operating Temperature	-10°C to +60°C
Storage Temperature	-40°C to +85°C
